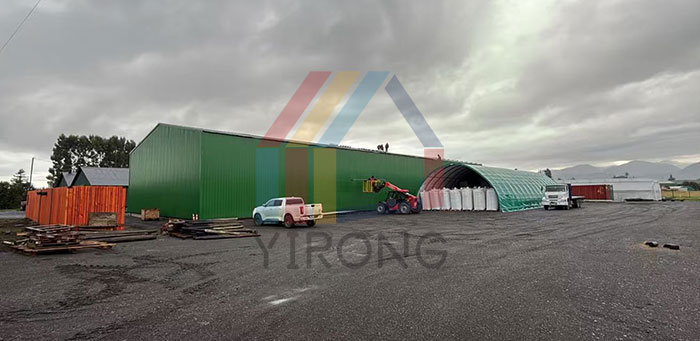

Chile Agricultural Warehouse

This agricultural warehouse project in Chile, with a one-stop solution provided by Yirong Group, has been successfully completed and officially put into use. Addressing the actual needs of Chilean agricultural warehousing and combining local climate and geographical features, the project has created a robust, efficient, and environmentally friendly modern architectural model.

Project Core Specifications and Structural Highlights

This project fully demonstrates the natural advantages of steel structure buildings in terms of large space and high efficiency:

Building Scale: The warehouse is 50 meters long and 20 meters wide, with a total building area of ​​1000 square meters.

Space Optimization: The eaves height is 6.6 meters, and the highest point of the roof reaches 8.53 meters. The spacious interior vertical space provides excellent conditions for the entry and exit of agricultural machinery, the stacking of agricultural products, and ventilation circulation.

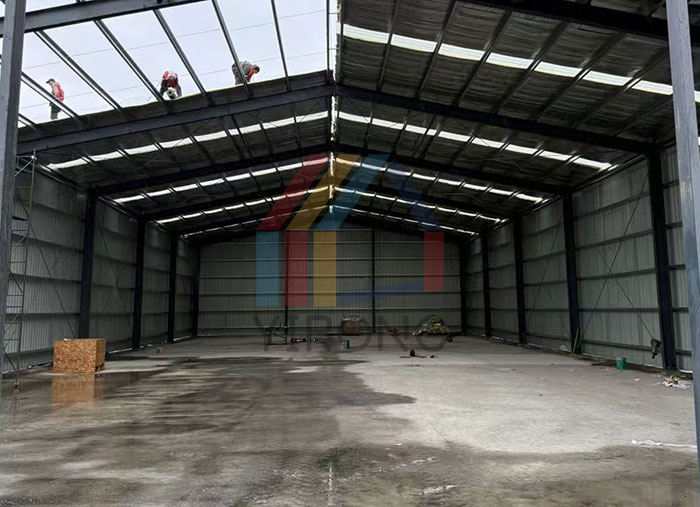

Main Structure: Utilizes a classic portal frame design.

Load-bearing System: High-strength H-beams are used for beams and columns, ensuring the building's excellent stability when facing potential wind and seismic loads in South America. Support System: The purlins are made of precision-machined C-shaped steel, forming a lightweight yet high-strength roof and wall support framework.

Enclosure System and Aesthetic Design

Considering the integration of agricultural architecture with the natural environment, the project carefully selected its enclosure system:

Color and Materials: Both the walls and roof utilize dark green single-layer metal plates. This color choice not only gives the building a modern industrial aesthetic but also allows it to blend perfectly into the local Chilean rural landscape.

Weather Resistance: High-quality coated metal panels possess excellent corrosion resistance and UV resistance, easily coping with local sunlight and climate changes, reducing long-term maintenance costs.

One-Stop Delivery Throughout the Process

From the Chilean client's initial concept to the final project implementation, Yirong Group demonstrated its profound international service capabilities:

Customized Design: Precise mechanical calculations and structural modeling were performed based on the 1000㎡ space requirements.

Precision Manufacturing: All H-beams, C-beams, and sheet metal are prefabricated in the Yirong factory, ensuring high precision of the components.

Worry-Free Logistics: We provide end-to-end international logistics support from booking to customs clearance, ensuring all components arrive at the Chilean construction site intact.

Rapid Assembly: Thanks to the prefabricated design with all bolted connections, the project achieved rapid on-site assembly, saving valuable agricultural operation time for our clients.

Do you also need a customized warehousing solution for your agricultural project in South America? Contact Yirong Group for your exclusive design and quote.
