What is PU Edge Rock Wool Sandwich Panel?

PU edge rock wool sandwich panel is a new generation of building envelope material that combines Class A fire resistance, excellent thermal insulation, good airtightness, and high structural strength. It combines the fire resistance of rock wool core material with the sealing advantages of polyurethane (PU) edge-sealing technology, making it increasingly used in industrial plants, logistics warehouses, food processing plants, cold chain centers, electronics factories, and public buildings, becoming an important enclosure system for modern steel structure buildings.

As the global construction industry's requirements for energy conservation, fire resistance, safety, and sustainable development continue to increase, traditional single-performance sandwich panels can no longer meet increasingly complex building needs. PU edge rock wool sandwich panels were developed against this backdrop, combining multiple performance advantages and becoming one of the mainstream products in the international market.

What is PU Edge-Sealed Rock Wool Sandwich Panel?

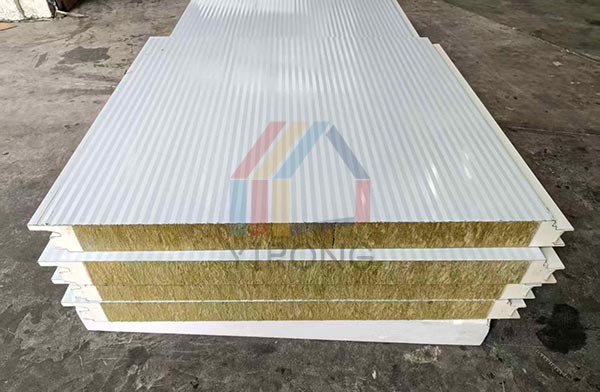

PU Edge Rock Wool Sandwich Panel is a composite metal sandwich panel.

Its structure typically consists of three parts:

* Outer layer of color-coated steel sheet (or galvanized steel sheet);

* Middle layer of Class A non-combustible rock wool core material;

* Edges sealed with high-density polyurethane (PU).

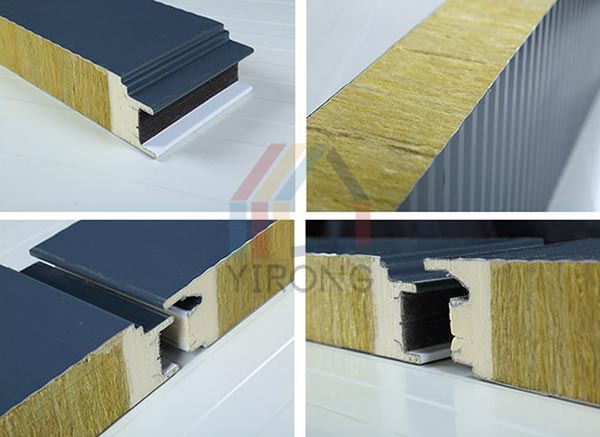

The biggest difference from traditional rock wool sandwich panel is that the rock wool is not directly exposed on the sides; instead, the edges are sealed with polyurethane, creating a more complete, stable, and sealed structure.

This design not only improves the product's appearance but also significantly enhances its overall performance.

What is the fire resistance rating of PU edge rock wool sandwich panel?

For industrial buildings, fire resistance is a crucial indicator for selecting enclosure materials.

The core material of PU edge rock wool sandwich panel is natural rock wool, a Class A non-combustible material. Depending on different national standards, such as EN 13501-1, it typically achieves an A1 or A2 rating. The specific rating should be based on the product testing report.

Rock wool has the following characteristics:

* Non-combustible when exposed to fire;

* Non-combustible;

* Maintains structural stability at high temperatures;

* Effectively slows the spread of fire;

* Reduces the risk of building fires.

It should be noted that PU is only used for edge sealing of the panels and is not the main core material. Therefore, it does not change the fire resistance of the entire panel, which is based on rock wool. Compliant products can still meet the design requirements of most industrial buildings, public buildings, and high-fire-resistance projects.

For industries with high fire safety requirements, such as food processing, pharmaceuticals, biotechnology, electronics manufacturing, and data centers, PU-sealed rock wool sandwich panels are a solution that balances safety and performance.

Why use PU edge sealing?

Many customers ask:

"Since rock wool is already fireproof, why add PU edge sealing?"

The reason is that traditional rock wool panels have some inherent defects, and PU edge sealing is designed to optimize these issues.

Improving the sealing performance of the panels

Ordinary rock wool panels have exposed rock wool fibers on both sides, which easily absorb dust and moisture.

After PU edge sealing:

* Tighter joints between panels;

* Reduced air permeability;

* Reduced risk of rainwater ingress;

* Improved overall building airtightness.

This is especially important for buildings requiring constant temperature control.

Improved thermal insulation performance

Rock wool has good fire resistance, but its thermal conductivity is generally higher than polyurethane.

PU edge sealing effectively reduces thermal bridges at panel joints, improving overall insulation performance.

Compared to ordinary rock wool boards:

* Less heat loss;

* Lower air conditioning energy consumption;

* Better building energy efficiency.

Especially suitable for industrial buildings in high-temperature or cold regions.

Enhanced structural strength

PU has high bonding strength.

After edge sealing:

* Stronger panel edges;

* More stable edge locking;

* Less prone to damage during installation;

* Improved overall compressive strength.

Provides better structural performance for roofing and exterior wall systems with large spans.

Improved Waterproofing

Traditional rock wool boards, if poorly edge-protected, may absorb moisture locally in humid environments over time.

PU edge sealing effectively protects the edges of rock wool:

* Reduces water absorption;

* Improves weather resistance;

* Extends the lifespan of the boards.

Especially suitable for coastal areas, high-humidity regions, and countries with high rainfall.

What are the advantages compared to ordinary PU sandwich panels?

PU sandwich panels use polyurethane as the core material throughout.

Its biggest advantages are:

* Excellent thermal insulation performance;

* Lighter weight;

* Outstanding energy-saving effect.

However, in terms of fire resistance, ordinary PU sandwich panels usually cannot reach the Class A non-combustible level of rock wool core materials, thus limiting their use in some projects with high fire safety requirements.

In contrast, PU edge sealed rock wool sandwich panels:

* Higher fire resistance;

* More suitable for high-risk industrial buildings;

* Easier to meet the fire safety requirements of large public buildings and industrial projects.

If fire safety is the primary objective of a project, PU edge rock wool sandwich panel is generally more advantageous.

What are the advantages compared to ordinary rock wool sandwich panels?

While ordinary rock wool sandwich panels already possess excellent fire resistance, the PU-sealed version represents a further upgrade.

Key advantages include:

* Better sealing performance: Reduces air and moisture penetration, improving the overall airtightness of the building.

* Superior thermal insulation performance: Reduces thermal bridging, improving building energy efficiency.

* Higher edge strength: Less prone to damage during transportation, hoisting, and installation.

* More aesthetically pleasing appearance: Neat panel joints result in a more modern building facade.

* Enhanced durability: Reduces exposed rock wool, improving long-term stability.

Therefore, an increasing number of high-end industrial buildings are adopting PU edge sealing rock wool sandwich panels to replace traditional rock wool panels.

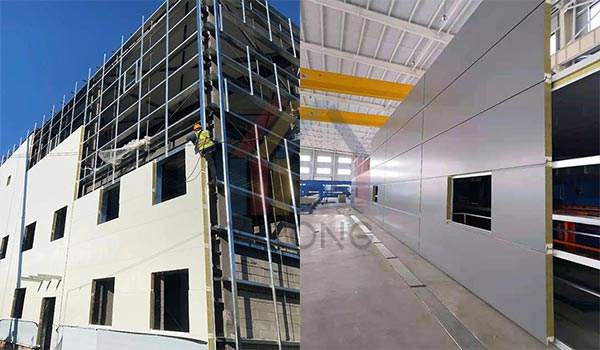

Which projects are suitable for PU edge rock wool sandwich panels?

Due to its combined fire resistance, thermal insulation, sealing, and durability, this product is widely used in various steel structure buildings worldwide.

Typical applications include:

* Industrial plants

* Smart manufacturing plants

* Food processing plants

* Pharmaceutical production workshops

* Cold chain logistics centers

* Data centers

* Electronics manufacturing plants

* Automotive parts factories

* Warehousing and logistics centers

* Airports and major transportation facilities

* Sports stadiums

* Exhibition centers

* Commercial complexes

* Schools and public buildings

It is an ideal building cladding material for projects that need to simultaneously meet energy-saving and fire safety requirements.

Why are more and more international projects choosing PU edge rock wool sandwich panel?

In recent years, the global construction industry has been shifting from single-performance to comprehensive performance.

Investors are not only concerned with material prices, but also with the comprehensive value of a building throughout its entire lifecycle, including:

* Building safety

* Energy consumption

* Service life

* Post-construction maintenance costs

* Environmental sustainability

PU edge rock wool sandwich panel achieve a good balance between fire resistance, thermal insulation, sealing, waterproofing, and structural performance, thus gradually becoming an important enclosure system for modern steel structure buildings.

With the rapid development of green buildings, low-carbon buildings, and high-performance industrial plants, this type of product will be increasingly widely used in the global market.

Conclusion

For modern steel structure buildings, the enclosure system not only determines the building's appearance but also directly affects fire safety, energy consumption, and long-term operating costs. PU edge rock wool sandwich panels by combining Class A non-combustible rock wool core material with polyurethane edge sealing technology, achieve a comprehensive improvement in fire resistance, thermal insulation, sealing, waterproofing, and structural strength, making it a high-performance enclosure solution for industrial and public buildings.

As a professional supplier of steel structures and enclosure systems, Yirong Group can provide global customers with a variety of enclosure system solutions, including PU-sealed rock wool sandwich panels, PU sandwich panels, PIR sandwich panels, and rock wool sandwich panels, according to different national standards, climate environments, and project requirements, helping customers create safer, more energy-efficient, and more durable modern steel structure buildings.
